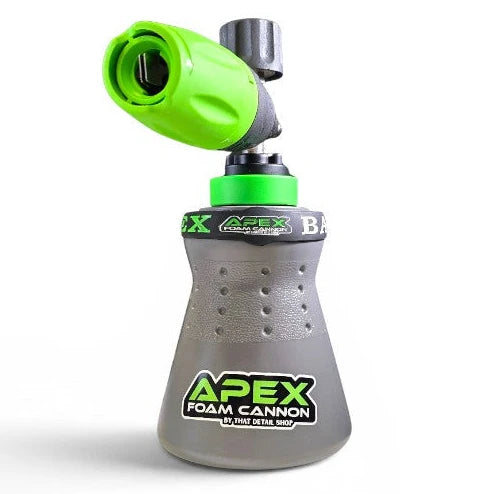

TDS Apex Foam Cannon

TDS Apex Foam Cannon

Thick foam, accurate mixing, every single wash.

The Apex from That Detail Shop is a complete foam cannon setup designed to do more than just make suds. It mixes consistently, measures accurately, stays stable on the ground and keeps pulling product right down to the last drop.

Thicker, more consistent foam
A three-part filter with 304 stainless steel parts wraps a dense foam element, giving you rich, clinging foam with a smooth, even mix of soap and water.

Mix it right every time
The 1 L bottle has a clear window with accurate measurement markings. Repeat your favourite dilution wash after wash, or work out exactly how much product is hitting the paint (Panel Impact Ratio) if you like to get technical.

Never lose suction
A silicone intake tube with a weighted pickup keeps drawing product even when the bottle is tilted or nearly empty. The wide, flat-based bottle won’t tip over when you set it down.

Suits most pressure washers
Comes fitted with a 1.1 mm stainless orifice for most home electric washers, plus a 1.25 mm orifice for higher-flow machines. Connects with a standard 1/4" quick connect.

Which orifice should I use?

• 1.1 mm (fitted): most home and lower-flow electric washers
• 1.25 mm: higher-flow machines, or if your washer pulses or struggles with the 1.1 mm

Foam thickness varies with your washer’s flow, water, shampoo and dilution.

How to use

1. Add shampoo at the recommended dilution, using the window to measure.
2. Top up slowly with water and screw on the cannon head.
3. Clip onto your pressure washer’s 1/4" quick connect.
4. Set the top knob for soap strength and twist the nozzle for fan width and direction.
5. Foam the car evenly and let it dwell, but don’t let it dry.
6. Rinse thoroughly before your contact wash.

Care

• Rinse the bottle, tube and pickup after every use
• Run clean water through the cannon to flush out soap
• Check the filter, orifice, valve and O-rings now and then for buildup or wear
• Store drained and clean, away from frost

What’s in the box

• Apex foam cannon head
• 1 L wide-mouth HDPE bottle with measuring window
• Silicone intake tube with weighted pickup
• Three-part foam filter
• 1.1 mm stainless orifice (fitted) and 1.25 mm orifice
• Stainless mesh filter
• 2 spare one-way valves
• Stainless quick-connect fitting
• TDS sticker

Specs

• Bottle: 1 L, HDPE
• Connection: 1/4" quick connect
• Requires a pressure washer
